HOME ≡ PRODUCT ≡ Full Servo Single Material Multifunctional Bag Making Machine

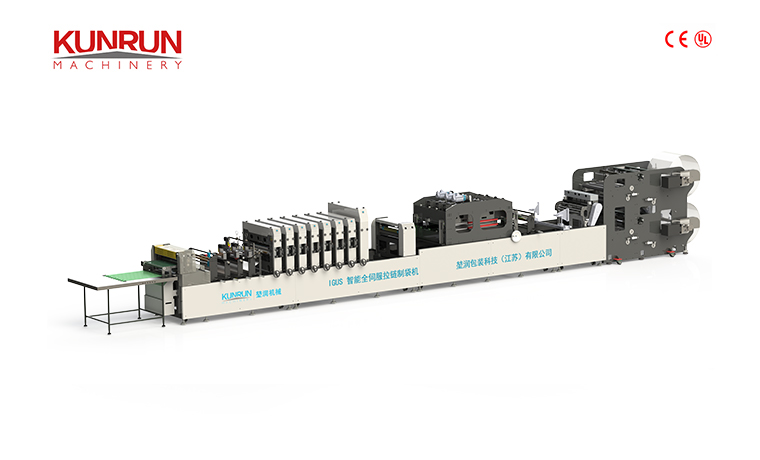

  • Full Servo Single Material Multifunctional Bag Making Machine

  • Full Servo Single Material Multifunctional Bag Making Machine

    Full servo machine, characteristics: the whole machine unrolling, hot pressing, cooling, bag making debugging action all by a single servo motor control moving line.

    • ￥0.00
      ￥0.00
Product Description

Full servo machine, characteristics: the whole machine unrolling, hot pressing, cooling, bag making debugging action all by a single servo motor control moving line.

The use of German custom bus control system, with sensitive, efficient and stable control, production data automatically feedback preservation, intelligent debugging equipment, to achieve the needs of the future of humanized intelligent factory production!

The purpose of intelligent debugging equipment, to achieve de-personalized intelligent future production needs of chemical plants!

The design goal of this equipment is to solve the historical problem of making bags of single material and new recyclable material, break through the limitation of single material, realize the demand of high speed production of single material, machine speed: 300 times per minute, 600-1200 finished bags can be produced per minute.


SPECIFICATION：

Model：

Third Generation SKB800-IGLSC Full Servo Single Material Multifunctional Bag Making Machine

Optional Model

600

900

Customization

Film Material

PE-PE,CPP,PET,OPP,PAPER and all kinds recyclable and laminating films

Film Size

Main film Max. Width：1200mm、 Max. Diameter：φ800mm

Insertion Max. Width：150mm、  Max. Diameter：φ500mm

The film size is the same for standard three side seal bags.

Rewinding Form of Film

Main films Horizontal Film Axis Type·M-Plate Mode·Tension Control Magnetic Brake

Inserted film vertical film axis type, K-plate folding bottom, tension control magnetic brake

AC Motor Driving System with inverter

Detection of printing color label by color label sensor

Bag-making Function

3 lanes three side seal, 2 lanes stand up pouch zipper bags ,2 lanes gusset stand up zipper bag

Bag-making speed

300shots/min

Unwind line Speed：

80m/min

Bag-making Size：

Bag length：80-550mm， Bag width：50-400mm，Insertion depth：20-70mm

Skip Feed Function

400 mm for one time, more than 400mm, used skip feed feature, maximum is 6times

Bad exclusion function

At the beginning of operation, in order to prevent the incorporation of bad heat sealing bags, a film with arbitrary distance is set from the cutting knife to remove double feeding.

Electrical Matching

Traction servo motor: 4 groups, 1.5KW-2 groups, 1KW-2 groups

Bag-making servo motor: 28 groups

Automatic positioning motor: 12 groups

Electrical Matching

Total Power：

95KW，380V，50H

Cooling Water：

10L/mi

Air Pressure：

0.6MPa（6Kgf/）cm²

Machine Dimensions

L*W*H：13500*2500*2300mm （By the selected function to determine the final size）

Option function

①Single line four side seal

②Double cutter (including round corner punches).

③Main web with non-stop function

④side gusset with non-stop function

⑤ Main web with registration control function

⑥ side gusset with registration control function

⑦ Fully automatic coffee valve

⑧ Fully automatic on-line die cutting

⑨ Fully automatic slider zipper

⑩CCD Cutter

New Model

Ultra-high speed stand up pouch with zipper bag making machine (300 shots/ min).

Automatic Detection Bag Strapping Machine


Machine parts diagram：

Using servo motor active unwinding structure, linear speed 90 meters per minute, reducing material traction, adapting to high-speed unwinding requirements of recyclable new materials or a single material, the main material is controlled by constant tension and non-stop unwinding, no need to stop the equipment operation , Directly update new material rolls to achieve a constant production mode without loss.


The longitudinal sealing and zipper body is a one-piece structure, up and down moving structure, a single set is equipped with a separate servo motor and the servo motor controls the pressing pressure, pressing time and pressing cycle, At the same time, all positioning adjustments are made by servo motor automatic displacement positioning， ensuring that new materials or single materials can be recycled It can be heat-sealed in the most perfect state without damaging the surface and controlling the traction force, avoiding the stretching of super-materials and the quality of the final product, and increasing the machine speed to 300 knives per minute, achieving a production capacity of 600 bags per minute.

The camera controls the double cutter structure, the high-definition lens accurately locates the cutting point, and the cutter performs high-speed and stable cutting action to ensure that the bag-shaped radius is complete and beautiful, reaching the accuracy standard of the die-cutting machine. Working speed: 300 knives per minute .

It is also equipped with the "Automatic Finished Bag Sorting Machine", and the synchronous bag making machine realizes high-speed and precise positioning, sorting, and strapping actions, adapting to finished bags of different sizes and functions.
